Ribbon Blender
Ribbon Blender
Efficient, Uniform & Reliable Powder Mixing

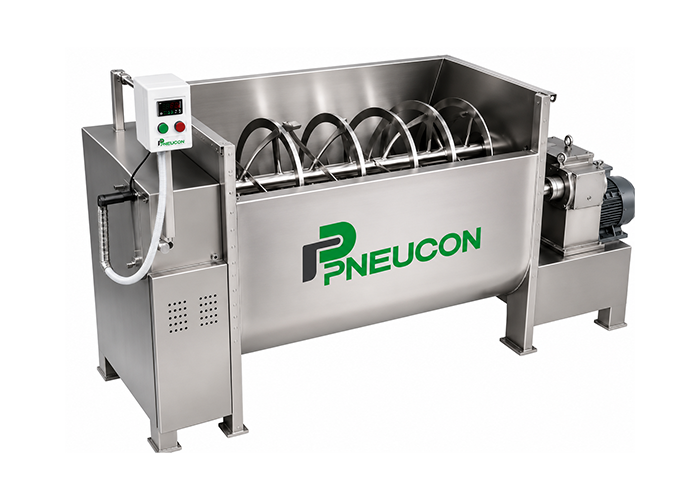

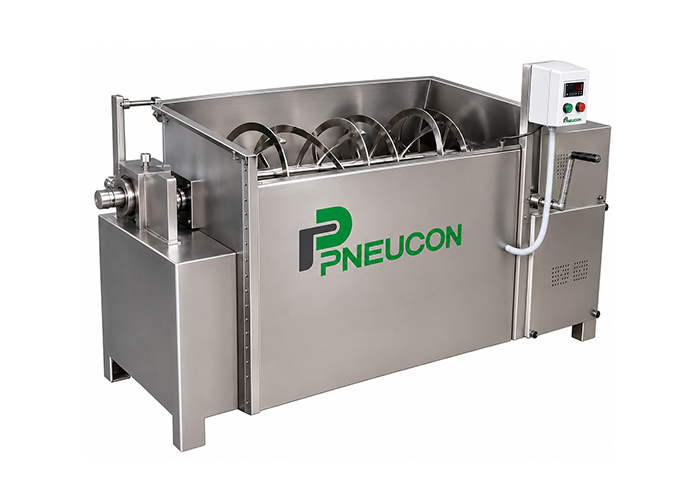

The PNEUCON Ribbon Blender is a high-performance industrial mixing machine designed for fast and homogeneous blending of powders, granules and dry materials. Built with precision-engineered inner and outer helical ribbons, it delivers consistent mixing quality while minimizing processing time and energy consumption.
Manufactured from premium-grade stainless steel, the Ribbon Blender is suitable for pharmaceutical, food, chemical, cosmetic, nutraceutical and agricultural industries where reliable mixing performance is essential.
Key Benefits
- Heavy-duty stainless-steel construction in SS304 or SS316
- Double helical ribbon agitator for uniform mixing
- Fast and efficient blending with low power consumption
- Hygienic design with easy cleaning and maintenance
- Available in multiple capacities from 50 L to 10,000 L
- Leak-proof shaft sealing options
- Bottom discharge valve for complete material evacuation
- Variable Frequency Drive (VFD) available
- Optional jacket for heating or cooling applications
- PLC and HMI automation available
Working Principle
The Ribbon Blender consists of a U-shaped horizontal mixing chamber fitted with inner and outer helical ribbons mounted on a central shaft.
- The outer ribbon moves material from both ends toward the center.
- The inner ribbon moves material from the center toward both ends.
- This counter-flow action creates a continuous mixing pattern, ensuring fast and homogeneous blending throughout the batch.
Technical Specifications
| Parameter | Specification |
|---|---|
| Design Features | Heavy-Duty Industrial Design or Hygienic Sanitary Construction |
| Capacity Range | 50-10,000 Liters |
| Working Volume | 40-70% of Total Volume |
| Batch Type | Batch Mixing |
| Mixing Time | 5-15 Minutes |
| Ribbon Design | Single and Double Helical Ribbon |
| Drive | Geared Motor |
| Shaft Speed | 20-60 RPM |
| Material Handled | Powder, Granules, Dry Free-Flowing, Wet, Sticky and Cohesive Materials |
| Material of Construction (MOC) | SS304 / SS316 / Mild Steel |
| Size Range | 5-15 Minutes |
| Power Requirement | 2 HP-100 HP |
| Discharge | Butterfly Valve / Slide Gate / Pneumatic Valve |
| Finish | Mirror / Matte Finish |
Applications
- Minerals
- Plastic
- Chemical
- Food
- Chemical
- Feed & Grain
