Pneumatic Blender
Pneumatic Blender

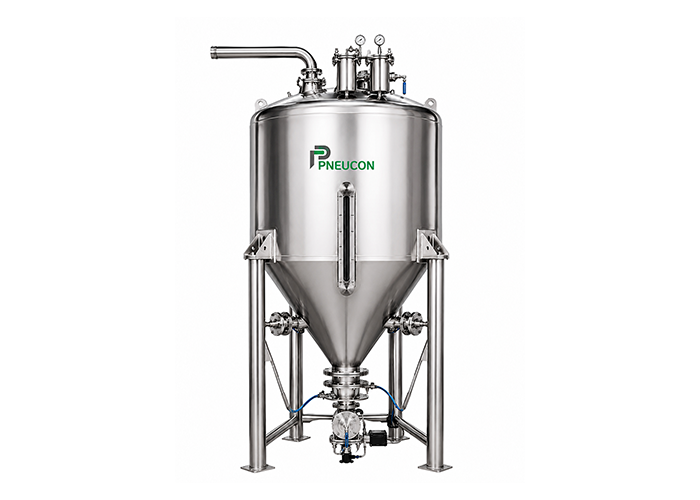

The PNEUCON Pneumatic Blender is designed for fast, gentle and uniform blending of powders and granules using compressed air. Unlike conventional mechanical mixers, the pneumatic blending system has no moving parts inside the hopper, resulting in low maintenance, minimal product degradation and contamination-free operation.
It is ideal for applications requiring high-quality mixing while preserving the physical properties of the material.
Key Benefits
- Homogeneous blending with excellent mixing accuracy
- No rotating or moving parts inside the vessel
- Dust-free and enclosed operation
- Low-maintenance and energy-efficient design
- Gentle mixing suitable for fragile materials
- Hygienic stainless-steel construction in SS304 or SS316
- Compact design requiring minimum floor space
- Optional PLC-based automatic operation
- Suitable for continuous or batch processing
- Easy installation and cleaning
Working Principle
The Pneumatic Blender uses compressed air to fluidize and circulate the material inside the conical hopper. The specially designed air distribution system creates a controlled flow pattern, ensuring complete and uniform mixing without mechanical agitation.
This process provides:
- Faster blending cycles
- Consistent product quality
- Reduced segregation
- Minimal material damage
Technical Specifications
| Parameter | Specification |
|---|---|
| Design Features | Heavy-Duty Industrial Design or Hygienic Sanitary Construction |
| Capacity Range | 500 L to 50,000 L (Custom Available) |
| Batch Type | Batch Mixing |
| Mixing Time | 5-20 Minutes (Depends on Material) |
| Air Requirement | Clean and Dry Compressed Air |
| Material Handled | Powder, Granules, Dry Free-Flowing, Wet, Sticky and Cohesive Materials |
| Material of Construction (MOC) | SS304 / SS316 / Carbon Steel |
| Operating Pressure | 4-7 Bar |
| Discharge Valve | Butterfly / Slide Gate / Rotary Valve |
| Automation | Manual / Semi-Automatic / PLC |
| Surface Finish | Mirror / Matte Finish |
Optional Accessories
- Load Cell System
- Dust Collector
- Bag Dump Station
- Hopper Loader
- Screw Conveyor
- Rotary Airlock Valve
- Level Sensor
- PLC Control Panel
- Safety Platform and Ladder
- Inspection Window
Applications
- Minerals
- Plastic
- Chemical
- Food
- Chemical
- Feed & Grain
